Double Acting Piston Seal - DA

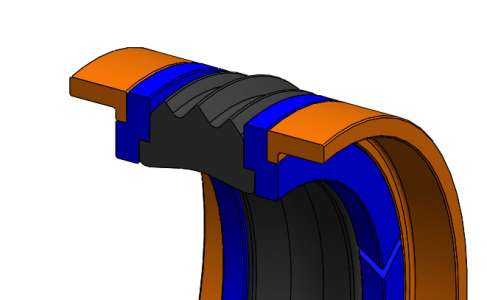

Designed specifically for one piece pistons, DA double acting seal uses a rubber
sealing element which is extremely wear resistant and effective in a wide range
of medium duty applications. The multi-lips is designed for efficient dynamic
sealing and low friction.



  • Well proven design
  • Long life economic sealing and guiding solution .

  • Truck cranes
  • Forklift and handling machinery
  • Agriculture equipment
  • Mobile hydraulics
  • Machine tools
  • Standrad cylinder

  • Main seal - NBR 75
  • Support Ring - PUS
  • Bearing - DE

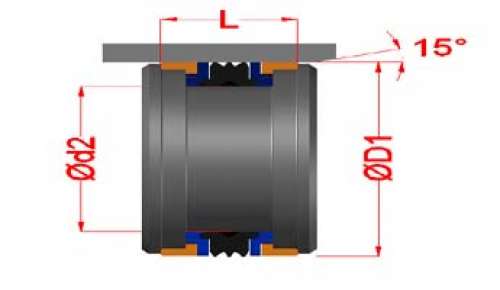

Part No. D1 d2 L Material Quantity Actions
DA4024184/312 40 24 18.4/31.2 NBR 75/PUS/DE
DA5034184/312 50 34 18.4/31.2 NBR 75/PUS/DE
DA6044184/312 60 44 18.4/31.2 NBR 75/PUS/DE
DA6347184/312 63 47 18.4/31.2 NBR 75/PUS/DE
DA7050224/352 70 50 22.4/35.2 NBR 75/PUS/DE
DA7555224/352 75 55 22.4/35.2 NBR 75/PUS/DE
DA8060224/352 80 60 22.4/35.2 NBR 75/PUS/DE
DA9070224/352 90 70 22.4/35.2 NBR 75/PUS/DE
DA10075224/352 100 75 22.4/35.2 NBR 75/PUS/DE
DA11085224/352 110 85 22.4/35.2 NBR 75/PUS/DE

Download Brochures
