SLIDE RING SEAL

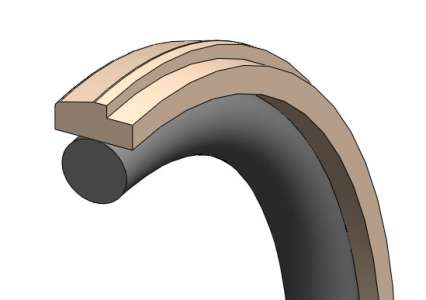

Used in tandem, the AB Seals PTC rod seal provides the designer with a compact

low friction seal for light to medium duty hydraulic cylinders. It is designed to

have high contact area with the rod to retain the media at low pressure. Standard

seals are supplied with a nitrile O ring but other materials can be provided.

ptc

• Mobile hydraulics

• Agriculture equipment

• Machine tools

• Lift platforms

• Main seal- PTB4 / PTB6

• O' ring- NBR 75 / VKM75

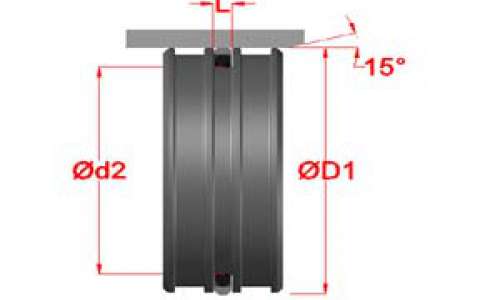

Part No.	D1	d2	L	Material
PTC127122	12	7.1	2.2	PTB4 / NBR 75
PTC1510122	15	10.1	2.2	PTB4 / NBR 75
PTC1611122	16	11.1	2.2	PTB4 / NBR 75
PTC1810532	18	10.5	3.2	PTB4 / NBR 75
PTC2012532	20	12.5	3.2	PTB4 / NBR 75
PTC2214532	22	14.5	3.2	PTB4 / NBR 75
PTC2315532	23	15.5	3.2	PTB4 / NBR 75
PTC2517532	25	17.5	3.2	PTB4 / NBR 75
PTC2618532	26	18.5	3.2	PTB4 / NBR 75
PTC2820532	28	20.5	3.2	PTB4 / NBR 75
