SINGLE ACTING V PACKING - VP

SINGLE ACTING V PACKING - VP

The AB Seals VP is a vee pack rod seal for medium duty applications offering excellent performance and long life even under difficult operating conditions such as pressure surges , vibration and some misalignment. The seal consists of a male and female adaptor and many vee rings as per our choice. It has grooves across one face to ensure equal pressure to the sealing edges of the vee ring. The female adaptor uses a hard rubberized fabric to support the vee rings and protect them from extrusion damage. At high pressure the lips of the adaptor acts as a secondary seal.

  • Precision moulded vee rings
  • Pressure distribution adaptros
  • Reilable sealing

  •  Mobile hydraulics
  •  Machine tools
  •  Injection cylinder
  •  Hydraulic presses
  •  Lift platforms

  • Febric rainforced rubber- NBRC/VKMC

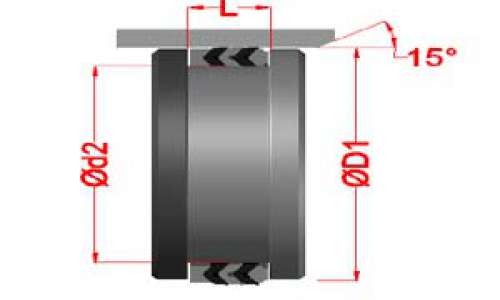

Part No. D1 d2 L Material Quantity Actions
VP15018040 150 180 40 NBRC/VKMC
VP16018040 160 180 40 NBRC/VKMC
VP17020040 170 200 40 NBRC/VKMC
VP18020040 180 200 40 NBRC/VKMC
VP18521040 185 210 40 NBRC/VKMC
VP19022140 190 221 40 NBRC/VKMC
VP20023040 200 230 40 NBRC/VKMC
VP21023040 210 230 40 NBRC/VKMC
VP22024040 220 240 40 NBRC/VKMC
VP22525540 225 255 40 NBRC/VKMC
